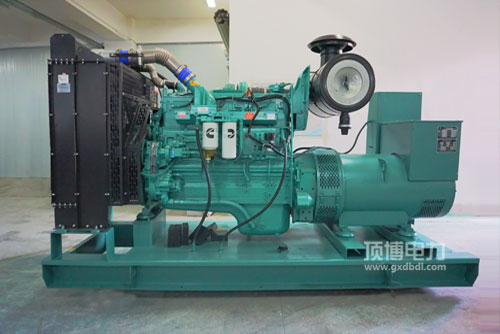

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用打火机气油经济实惠性好: 较为先进的气油掌握整体，独特的的STC、ESTC 等级划分掌握整体，异常设定的活塞式上端然烧室，超高压喷涌气油，更加完全雾化吸入，然烧更加完全。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用发起机瞬态效能优等: 好看的发起机整体风格方案，协调一致康明斯与众不同的EFC系统的，操纵高精准高，回应日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用汽车发因素升公率高: 产品 设计的概念紧凑型.内部结构安装合适，运转平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50符合国内 非路途第三点时段.及亚洲Tier2. Tier 3排放量规范符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可知性好， 启主观因素加载及维护维护便利店加盟，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率依据 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯火力发电用发起机的作用：大小小， 减少变高， 格珊空气当中供暖，方便于启动时，移动式车载多媒体电源线的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机款型	常见工作效率(kW)Prime Power	应急额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
